Description
Description

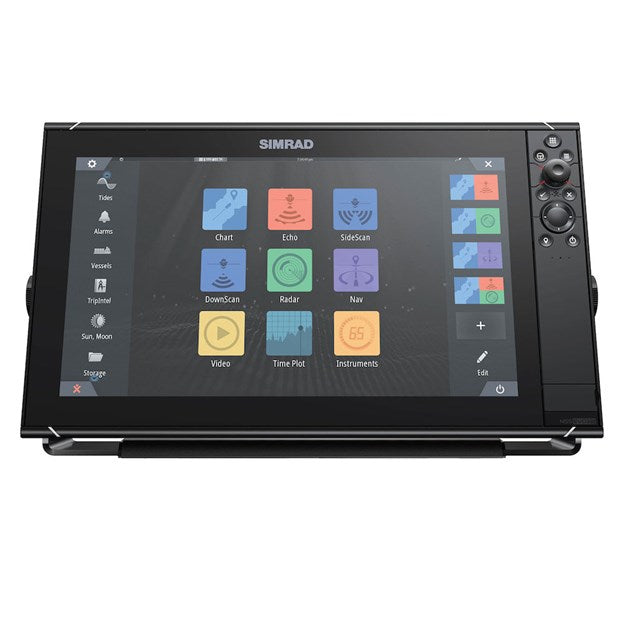

Simrad NSS16 evo3S with World Basemap
The Simrad NSS16 evo3S features a 16-inch SolarMAX™ IPS touchscreen display, delivering unparalleled clarity, ultra-wide viewing angles, and exceptional sunlight visibility. Powered by the iMX 8 high-performance processor, this chartplotter/sonar combo offers lightning-fast response times and smooth screen transitions. Ideal for anglers, cruisers, and sailors, the NSS16 evo3S integrates all the essential features for a superior on-water experience.
Key Features:
- 16-inch SolarMAX™ IPS display, offering superior clarity and ultra-wide viewing angles, viewable through polarized sunglasses
- Seamlessly switch between touchscreen, keypad, and rotary dial control
- Built-in 1kW CHIRP echosounder for exceptional fish-finding and bottom-tracking performance

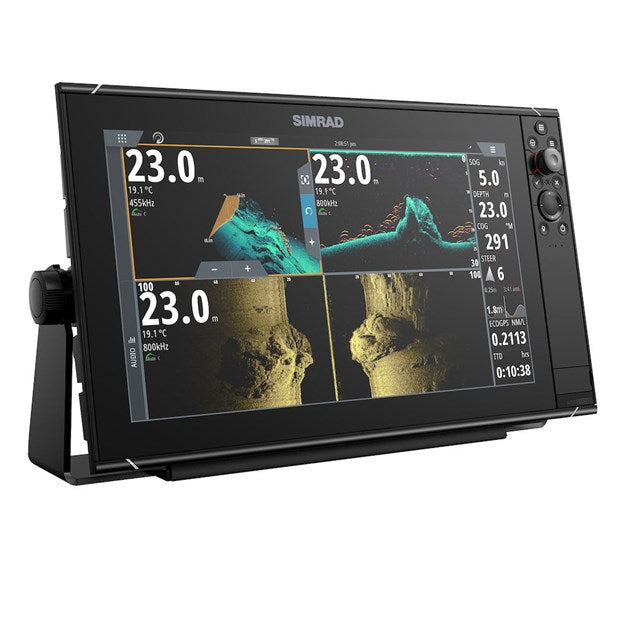

- Active Imaging™ HD, ActiveTarget® live sonar, and StructureScan™ 3D for detailed, high-resolution sonar views
- Preloaded world basemap, with compatibility for C-MAP® Genesis Live, and third-party chart vendors

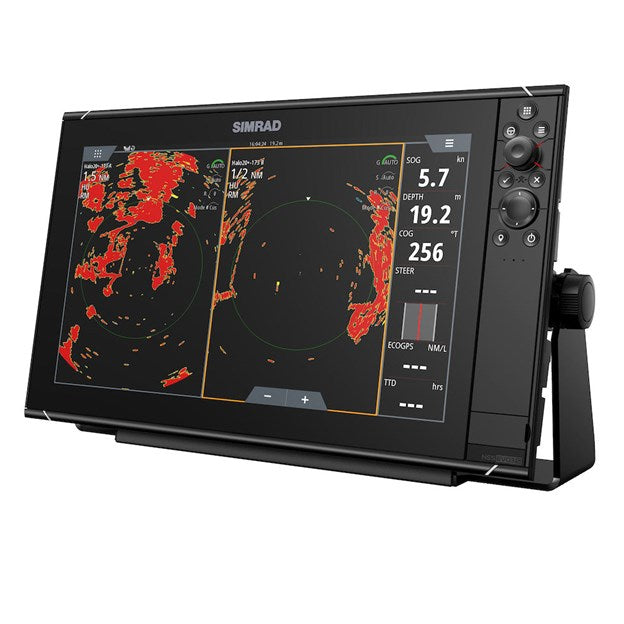

- Wireless connectivity and NMEA 2000® integration for seamless networking with Simrad sonar, radar, autopilot, and more
- Supports SteadySteer™ for autopilot performance enhancement with RPU drive pumps
- Control and monitor Simrad sonar, radar, engines, and accessories from one screen
- TripIntel™ support for efficient routing, plus automatic routing options
- Connect to the Simrad App for remote control, trip planning, and on-the-go software updates
- Optional integration with Mercury® Smart Tow® for wake shaping and other advanced features
The NSS16 evo3S is the ultimate tool for navigating and fishing, providing full control of your boat’s systems, sonar, and charting functions. With its powerful features and high-definition display, this model is built for serious boating enthusiasts.
Display
Backlight Color: White
Display Resolution: 1280 x 800
Screen Brightness: 1200 nits
Viewing Angles: 80° top/bottom, 80° left/right
Physical
Compass Safe: 50 cm (1.7 ft)
Dimensions (W x H x D - Display only): 437 x 256 x 98 mm (17.19 x 10.08 x 3.82")
Dimensions (W x H x D - With bracket): 462 x 264 x 122 mm (18.19 x 10.39 x 4.80")
Mounting Type: Bracket (accessory part number 000-13760-001) or panel mount
Weight: 4.65 kg (10.25 lbs)
Electrical
Power Consumption (max): 40 W
Recommended Fuse Rating: 7.5A
Supply Voltage: 10 - 31.2 V DC
Environment
Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Waterproof Rating: IPX6 and IPX7
Connectivity
Bluetooth: Internal
Ethernet Ports: 2 x 5 pin yellow connector x 10/100 Mbit
Wi-Fi Connectivity: Internal
N2K PGNs Supported: Extensive list of supported PGNs (see original for details)
SD Card Storage: 2 micro SD cards up to 32 GB each
Video: 2 x composite (RCA connectors) video inputs. Optional video/data cable required (P/N 000-00129-001). HDMI output
Cartography
Charts Supported: C-MAP Reveal, C-MAP Discover, C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Autopilot
Manoeuvres: Turn Patterns, Course Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
GPS
Correction: DGPS, WAAS
GPS Receiver Channels: 16
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix: Cold start 50 sec, Satellite Reacquisition 5 sec
Update Rate: 10 Hz
Sonar Compatibility
Sonar Output Power: 1 kW
Sonar Compatibility: Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
MFD
AIS: Receive AIS data over NMEA 2000 or NMEA 0183
Autopilot: Full autopilot control and commissioning
Cartography Included: World basemap, detailed chart card required
Digital Switching: C-Zone, Naviop
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
Other
Interface: Hybrid multi-touch screen, buttons, and rotary knob
Languages Supported: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish, and more
Warranty Period: 2 Years
